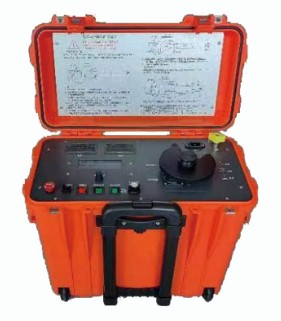

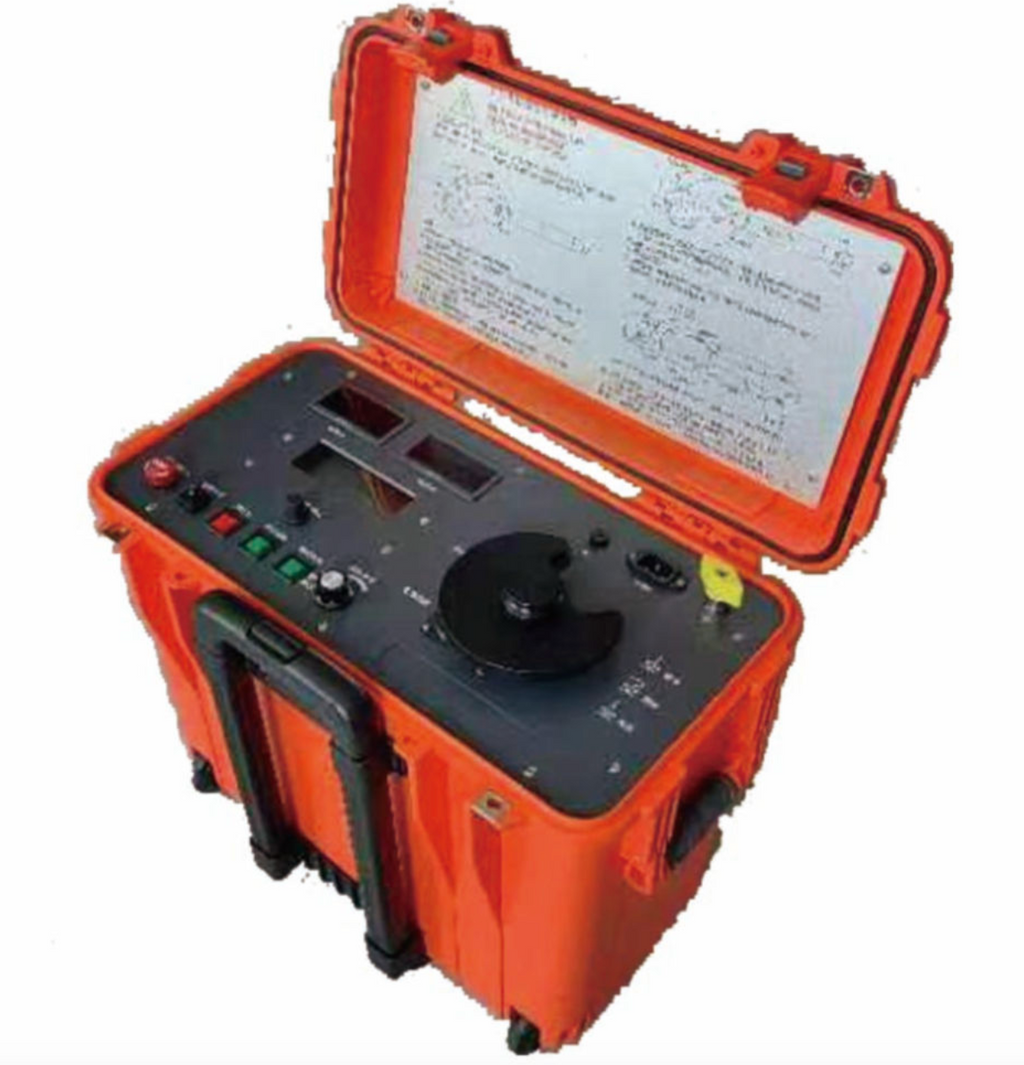

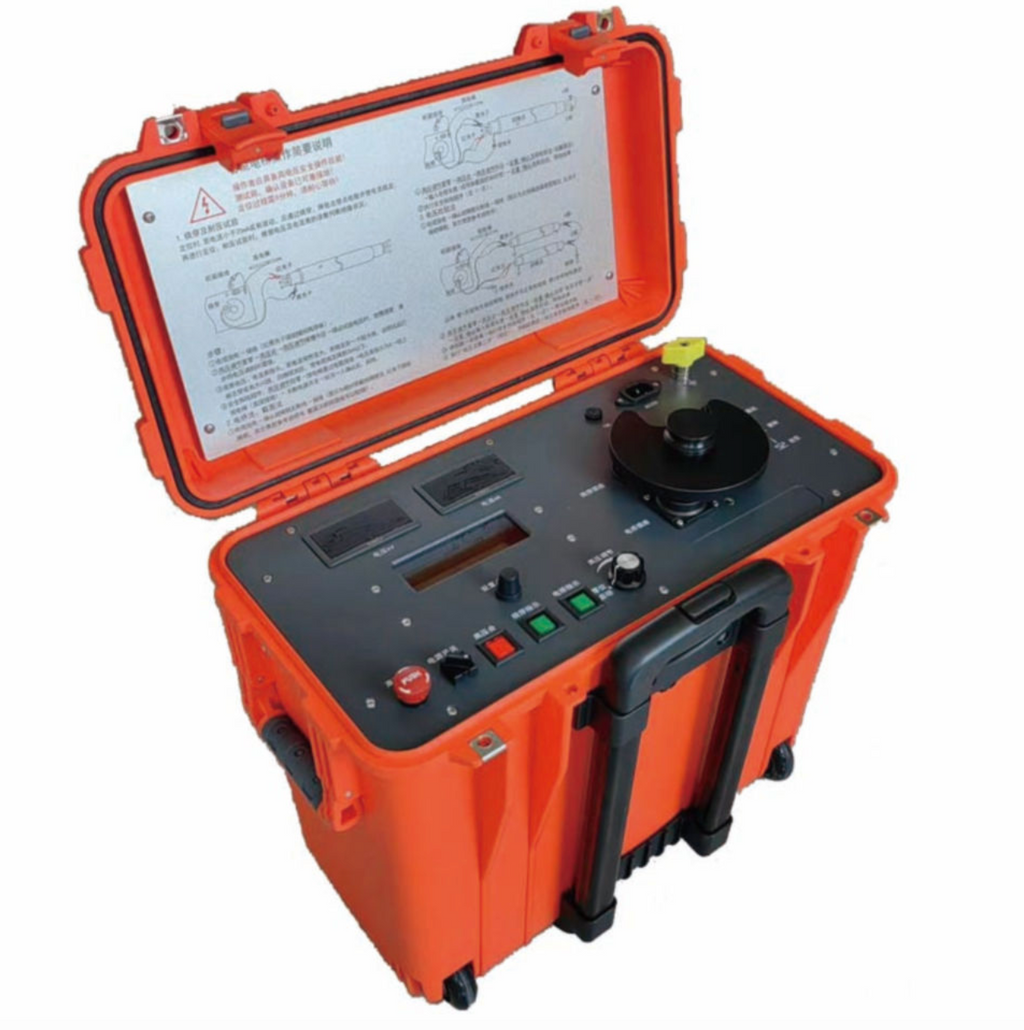

MB10 HV Bridge & Burnout System — High-Precision Fault Location for Difficult Faults
Short Description
The MB10 integrates a high-voltage intelligent bridge and burn-out power supply in one unit. It handles ultra-long cable faults, high-resistance faults, and faults that TDR cannot detect — including cables in GIS systems without de-termination.
Long Description
Overview
Some cable faults simply cannot be detected by standard TDR methods — ultra-high-resistance faults, faults in cross-bonded systems, and faults in GIS cables where the far end cannot be accessed. The MB10 solves these challenges using the classic bridge method combined with a powerful burn-out supply. One-button operation displays the fault distance digitally, with no complex calculations required.
Key Features
- Bridge + Burnout Integrated — Single unit handles both functions
- One-Button Operation — Digital fault distance display, no calculations needed
- Four-Terminal Resistance Measurement — Eliminates lead resistance errors
- 60kV Burnout Output — Burns down high-resistance faults for subsequent testing
- GIS Cable Fault Location — Locate faults without removing cable terminations
- Cross-Bonded System Fault Location — Pinpoint faults without dismantling cross-bonding
- Ultra-Long Range — Locates faults up to 50km
Technical Specifications
What's Included
- 1x MB10 Main Unit
- 1x Test lead set (high-voltage)
- 1x Ground cable
- 1x Power cord
- 1x User Manual (English)
Pricing
- Single Unit: $9,500 FOB (¥95,000)
- Compatible with Enterprise Package
