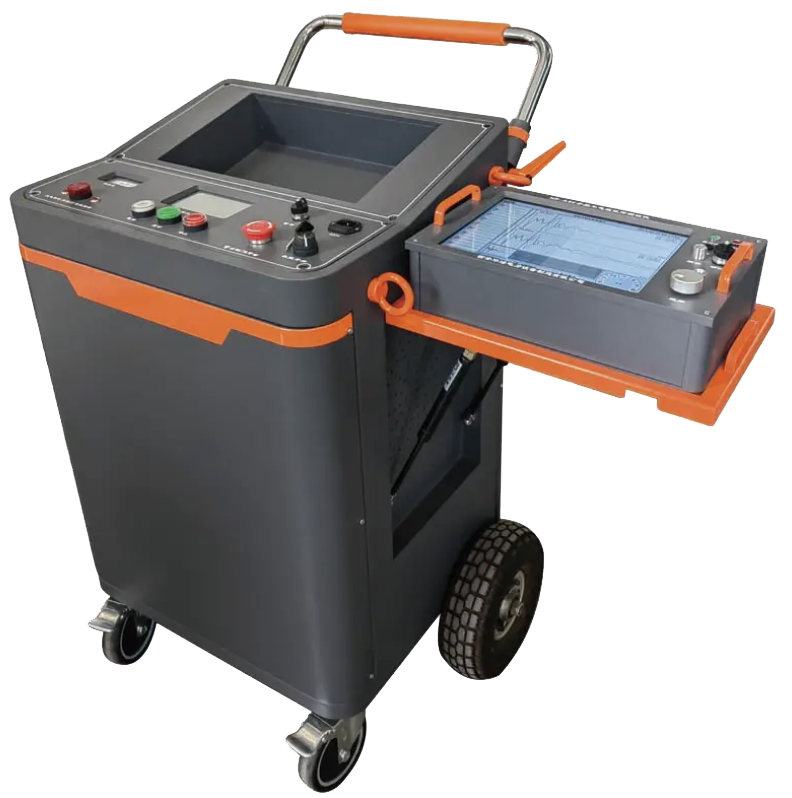

The A50 Trolley-Mounted Cable Fault Test System integrates TDR pre-location, HV conditioning, and pinpointing into one deployable rig — factory direct at $29,900.
What Is the A50 Trolley-Mounted System?
The A50 bundles TDR pre-location, HV conditioning, impulse generation, and acoustic-magnetic pinpointing into a rugged trolley with tow handle and casters. It deploys in under 10 minutes on site. This all-in-one design cuts fault response time from days to hours.
Why Choose a Trolley-Mounted System?
Portable cases require setup and connection time at each site; a trolley system is pre-integrated and rolls out ready to use. For utilities covering a regional network, the A50's sub-10-minute deployment reduces time-to-test on every outage. The lockable compartments keep all tools secure between sites.
What Are the System's Key Specifications?
The A50 covers 380V–500kV (configuration dependent) with a 0–100 km TDR (±0.5 m) and an integrated HV supply up to 32 kV (upgradeable). Its impulse generator delivers up to 2,048 J. System weight is about 130 kg on the trolley frame.
How Does the A50 Compare to Portable Kits?
A portable kit ($16,000–$28,000) requires module setup at each site; the A50 trolley ($29,900) eliminates that step with a pre-integrated rig. For teams responding to frequent faults, the setup-time savings justify the higher price. The A50 also serves as a training and demonstration unit for utility centers.
Key Features
- Integrated TDR, HV conditioning, impulse, and pinpointing in one rig
- Rugged trolley with tow handle and casters; deployable in minutes
- Integrated data-logging for test documentation
- CE-certified modules with factory test certificates
Technical Specifications
| System Voltage | 380 V – 500 kV (config dependent) |
| TDR Module | 0–100 km, ±0.5 m |
| HV Supply | 0–32 kV (upgradeable) |
| Impulse Generator | Integrated, up to 2,048 J |
| Pinpointer | Integrated acoustic-magnetic |
| Deployment Time | < 10 minutes on site |

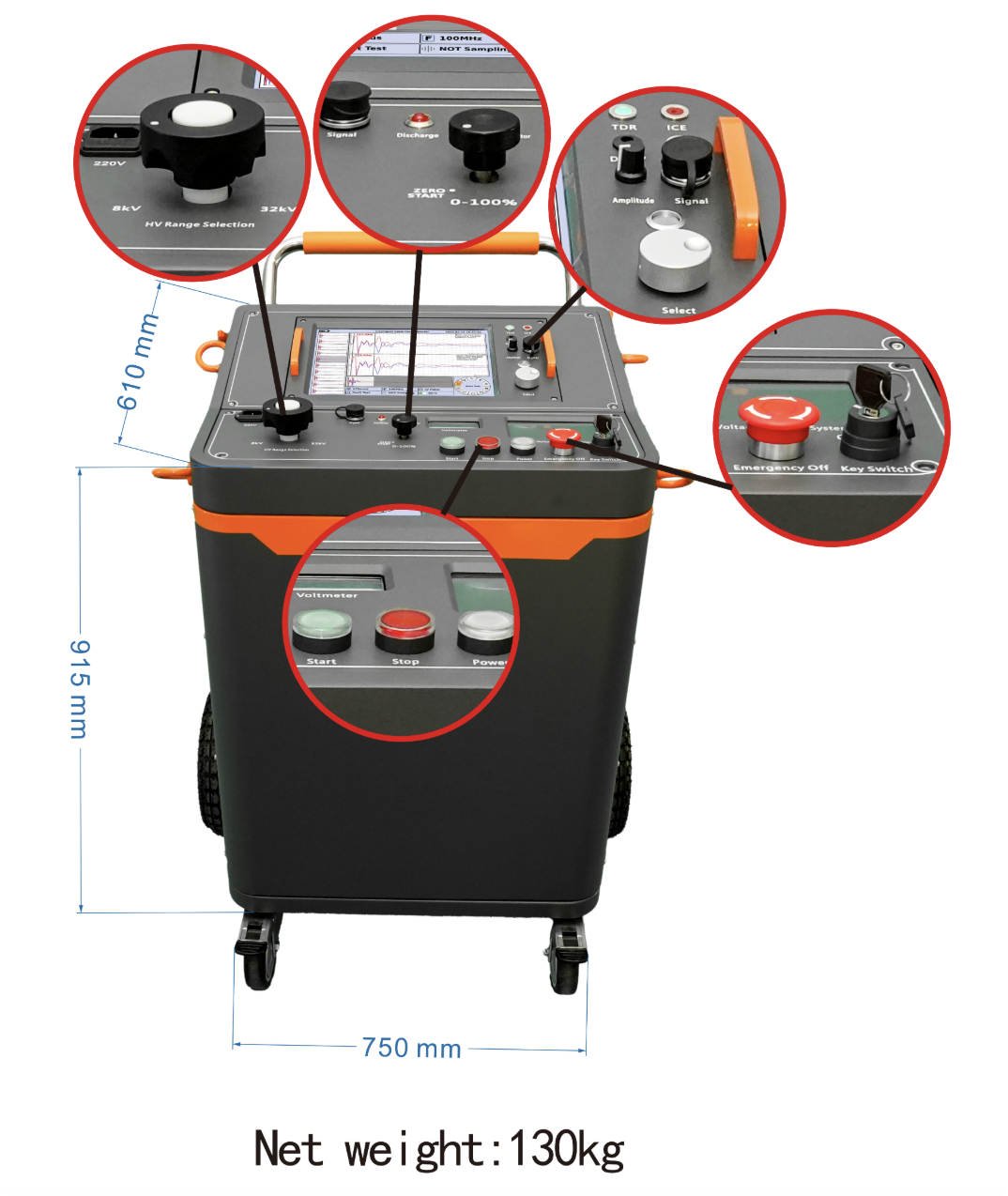

| System Weight | ~130 kg |
| Lead Time | 20–25 days |
Applicable Scenarios
- Utility rapid fault response — deploy a complete rig within minutes
- Multi-site network coverage — one trolley serves a regional network
- Contractor service fleet — mobile fault location for multiple clients
- Integrated workflow — TDR, conditioning, and pinpointing in one unit
- Training and demonstration — utility centers and distributor fleets
Testing Method
- Deploy trolley — wheel to the access point; plug into site power
- Connect cable — attach HV and TDR leads to the faulted phase
- TDR pre-location — measure fault distance from the integrated TDR
- Condition if needed — apply HV conditioning from the supply
- Pinpoint — impulse + acoustic pinpoint around the marked distance
- Document — export test data from the data-logging feature
- Secure & transport — stow leads, lock compartments, tow to next site
Quality & Delivery
- Factory integration testing — full system calibration before shipment
- CE certified — compliant high-voltage modules
- Heavy-duty packaging — equipment crated with shock protection
- Lead time — 20–25 days
- After-sales — 1-year warranty, lifetime maintenance, commissioning support
FAQ
What is a trolley-mounted cable fault test system?
An integrated rig with TDR, HV supply, impulse generator, and pinpointer on a mobile trolley.
How fast can the A50 deploy?
Under 10 minutes from arrival to testing — significantly faster than portable case setups.
What voltage does the A50 cover?
It covers 380V–500kV depending on configuration.
Is the A50 suitable for regional utilities?
Yes — one trolley serves a regional network with rapid response capability.
What is the A50's price?
$29,900 with a 1-year warranty and lifetime maintenance support.
