Name: G35 Fault Location Power Supply
Brand: HUAPU
SKU: 43
Price: 3800.00 USD
Availability: InStock

G35 Fault Location Power Supply

$3,800.00

$3,800.00 $5,300.00

G35 Fault Location Power Supply — High-Voltage DC Supply for Burn-Out & Fault Conditioning

Short Description

The G35 is a portable high-voltage DC power supply designed for cable fault burn-out and conditioning. Featuring a touch screen interface, built-in capacitors, and automatic discharge, it prepares high-resistance faults for TDR pre-location and acoustic pinpointing.

Long Description

Overview

The G35 Fault Location Power Supply is the workhorse of any professional cable fault testing kit. It delivers controlled high-voltage DC to burn down high-resistance faults into low-resistance faults, making them detectable by TDR flash testers and pinpointers. With a compact 3-proof case, touch screen control, and 1536J output, it handles the toughest field conditions.

Key Features

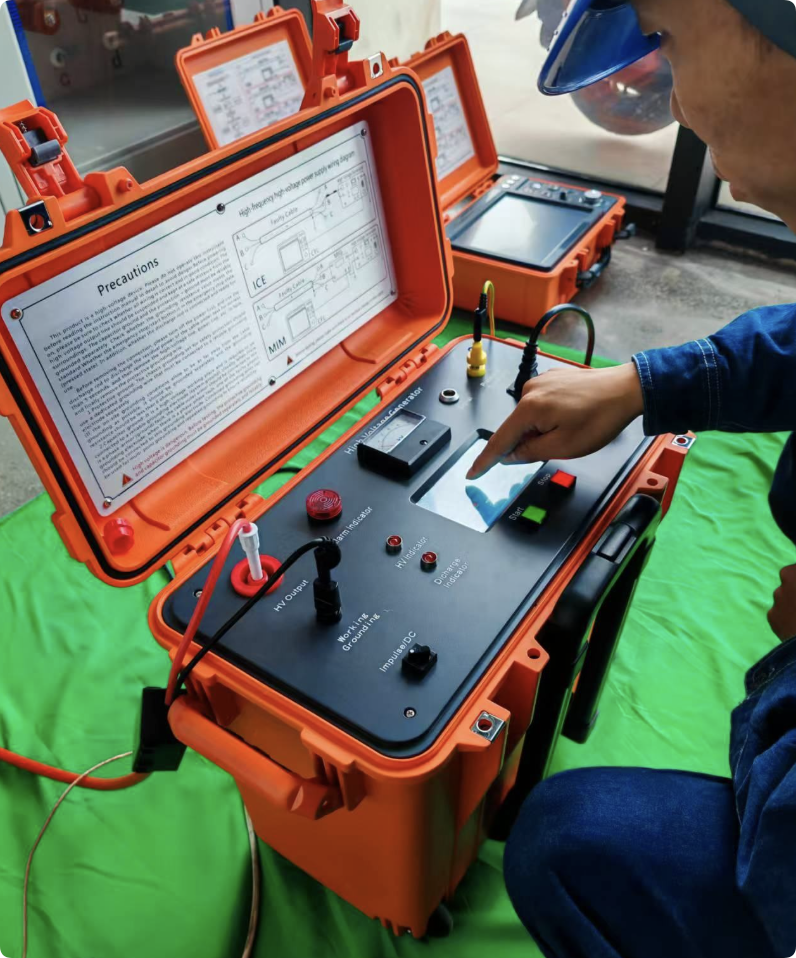

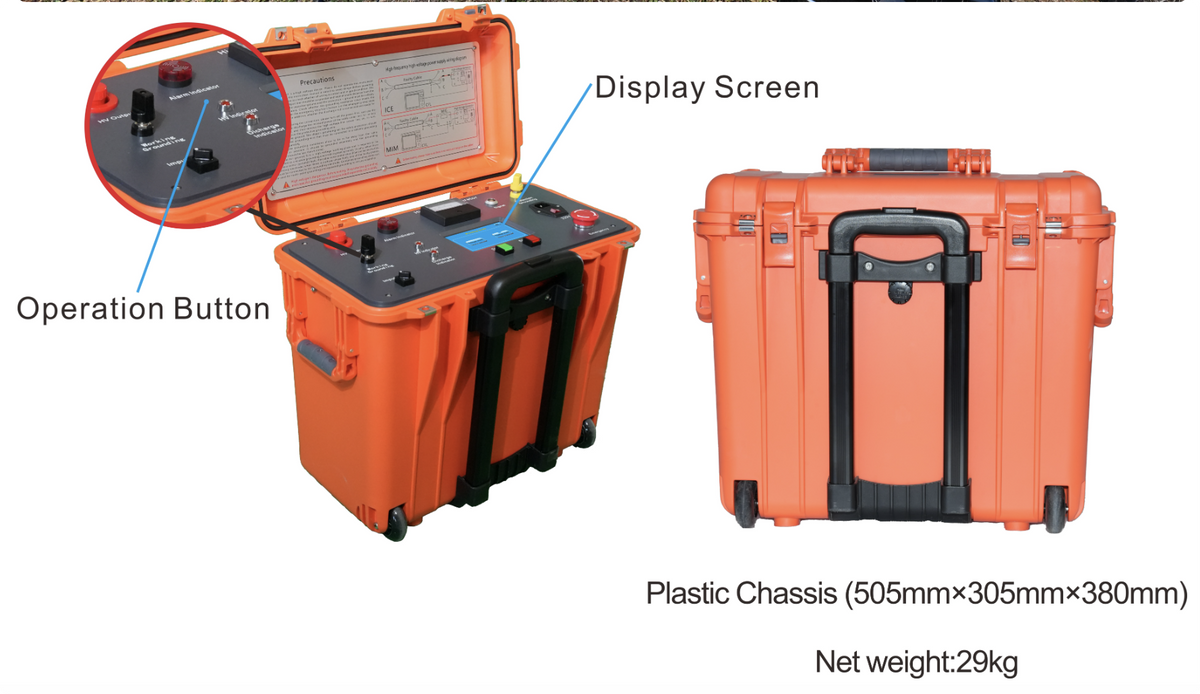

Touch Screen Control — Intuitive operation with adjustable output voltage
Integrated Design — Built-in capacitors, no external connections needed
Up to 32kV Output — Handles medium-voltage cable faults
1536J Max Energy — Powerful enough for long cable sections
Single & Continuous Pulse Modes — Adapt to different fault types
Auto Discharge — Safety features: one-key emergency stop and automatic discharge

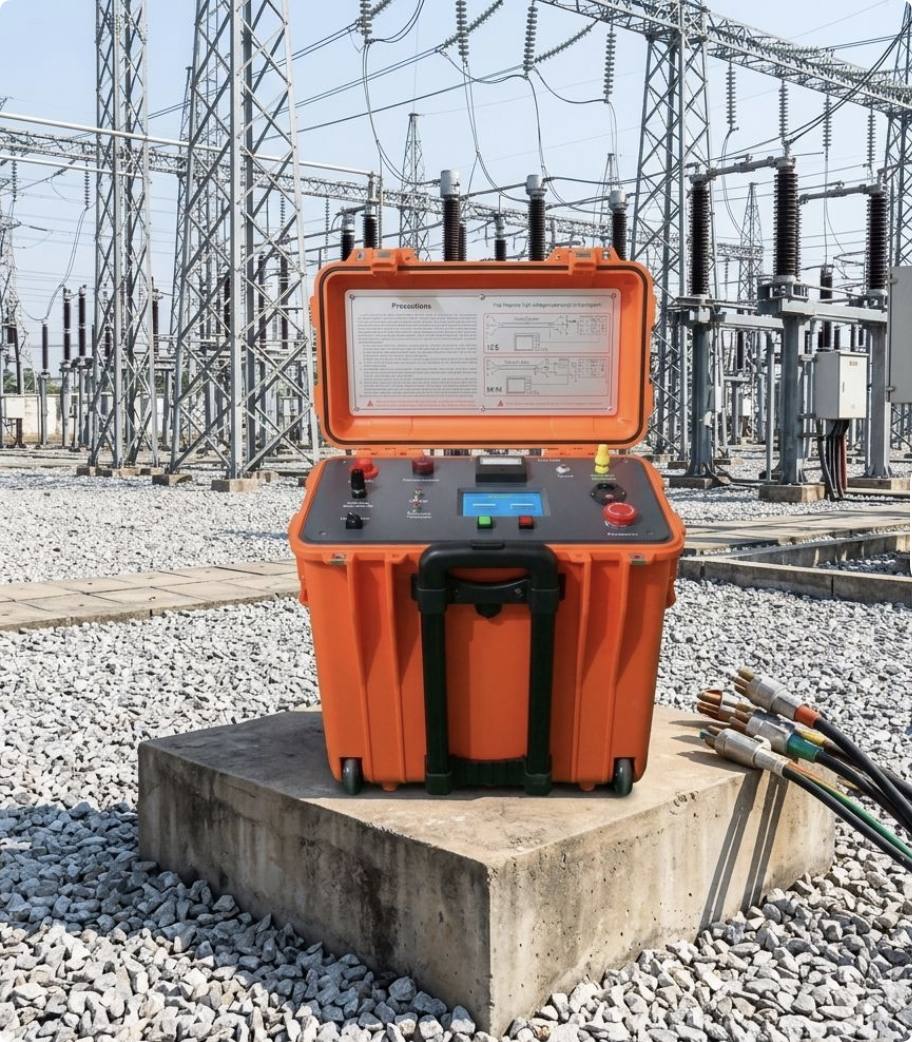

3-Proof Case — Rugged design for field transport

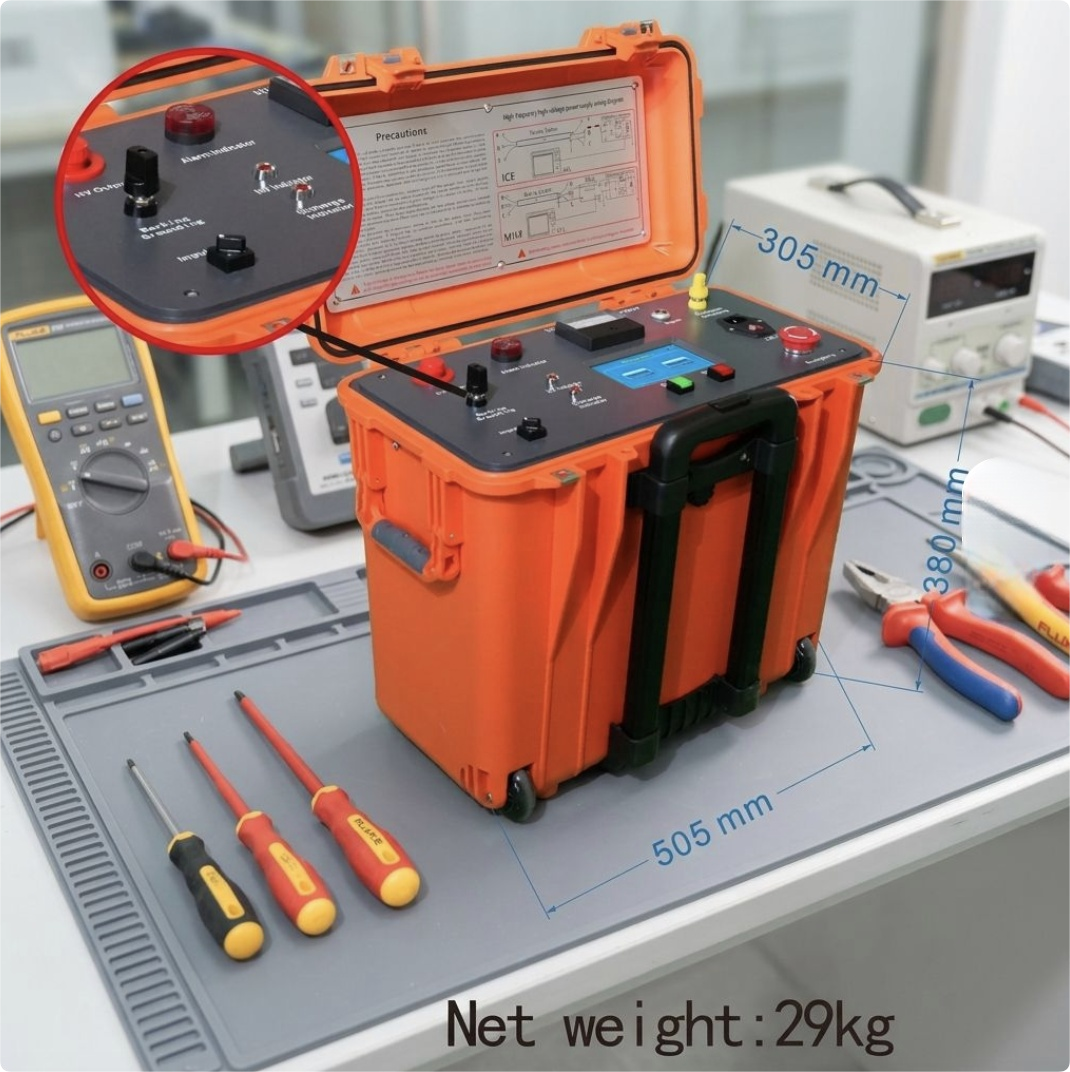

Lightweight — Only 28kg, easy to transport

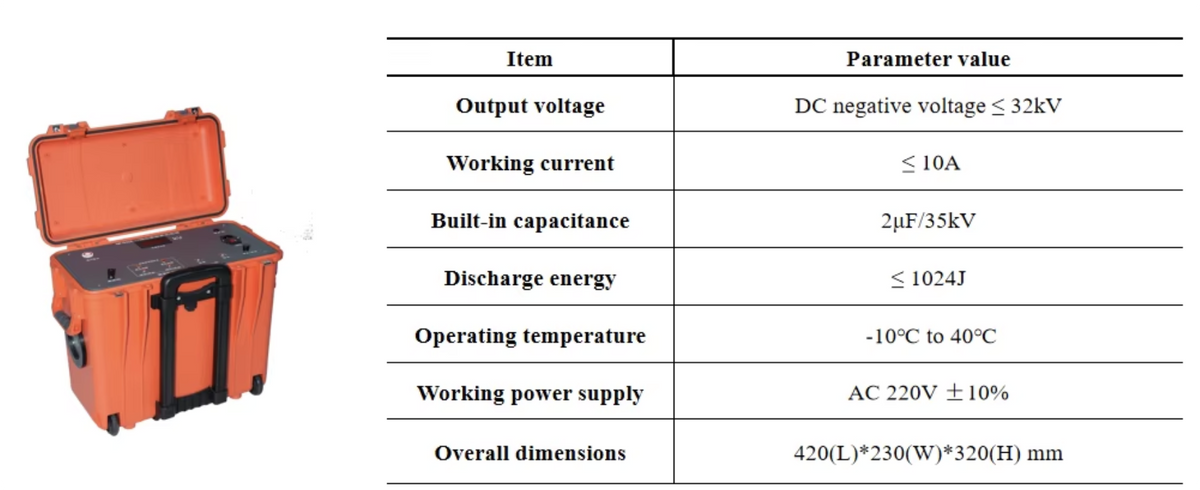

Technical Specifications

Parameter	Specification
Display	800×480 touch LCD
Output Modes	Single pulse, continuous pulse
Max Output Voltage	32kV
Built-in Capacitor	3µF / 35kV
Discharge Energy	≤1536J
Pulse Period	4s–8s adaptive
Auto Discharge	Yes — stops automatically on shutdown
Weight	≤28kg
Power Supply	220V AC ±10%, 50Hz

vs Megger / BAUR Equivalent

Compare	G35	Western Equivalent
Price	$3,800 FOB (¥38,000)	$8, 000 –$ 15,000
Touch Screen	✅ Yes	❌ Usually button interface
Max Energy	1536J	1500–2000J
Weight	28kg	30–40kg
Auto Discharge	✅ Standard	✅ Standard
Warranty	1 year	1 year
