A52 Trolley-Mounted Cable Fault Test System — All-in-One Mobile Testing Solution

Short Description

The A52 is a fully integrated trolley-mounted cable fault testing system combining TDR pre-location, impulse generation, and acoustic pinpointing in one mobile unit. Designed for 380V–500kV cables with up to 2048J impulse energy.

Long Description

Overview

For teams that need a complete testing solution in one mobile package, the A52 Trolley System delivers. It integrates a TDR flash tester, high-voltage impulse generator (up to 32kV), and acoustic pinpointer into a rugged trolley with 25m test leads. The Linux-based touch screen interface and one-button operation make it suitable for operators of all experience levels.

Key Features

  • Fully Integrated System — TDR pre-location, HV impulse, and pinpointing in one trolley
  • High-Energy Impulse — 2048J max energy, 3 capacitor banks (4/16/64µF)
  • 12.1" Touch Screen — Linux OS, intuitive operation
  • Up to 32kV Output — Handles distribution and transmission cables
  • 25m Test Leads — Flexible for near and far test points
  • Ground Loop Monitoring — Real-time safety protection for personnel and equipment
  • Auto Discharge — Safe capacitor discharge on shutdown
  • Professional Access Control — Key-switch for high-voltage activation
  • All-in-One Mobility — No separate components to carry

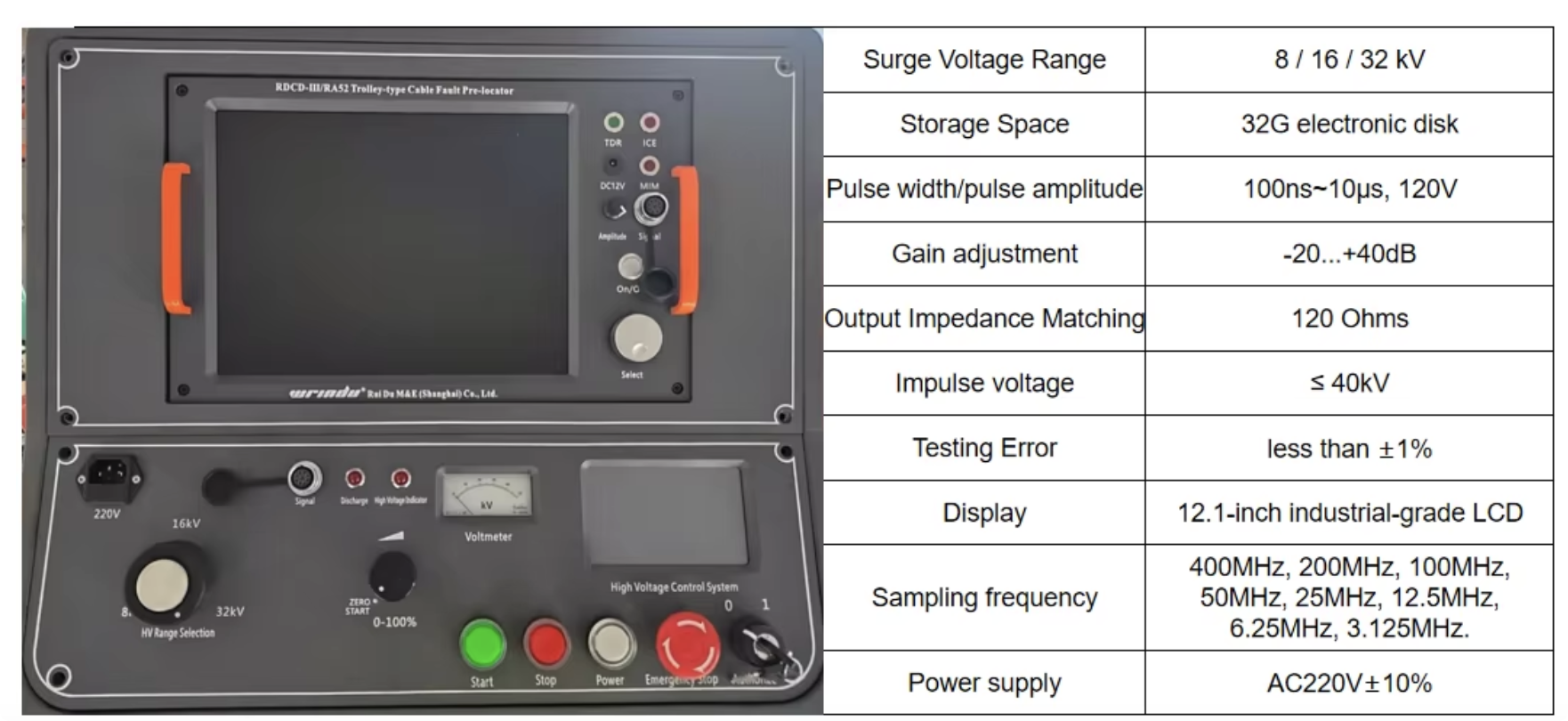

Technical Specifications

Parameter Specification
Cable Rating 380V ~ 500kV
Pre-location Methods Low-voltage pulse, pulse current, multiple impulse
Display 12.1" color LCD touch screen
OS Linux
Control Touch screen + rotary knob
TDR Range 5 ~ 100km
Sampling Frequency 6.25 ~ 200MHz
Pulse Width 20ns ~ 40µs
Pulse Amplitude 120V
HV Output 0 ~ 32kV continuously adjustable
Built-in Capacitors 4µF/32kV, 16µF/16kV, 64µF/8kV (3 banks)
Max Impulse Energy 2048J
Working Modes Continuous flash, single flash
Pulse Period 1 ~ 10s
HV Display 5" color LCD, 800×480
Pinpoint Accuracy 10% of cable depth
Noise Reduction BNR background noise filtering
Auto Mute Yes
Ground Protection 10Ω threshold
Input Power AC220V±10%, 50Hz
Dimensions 530(L) × 430(W) × 960(H) mm
Weight 90kg

What's Included

  • 1x A52 Trolley System (fully integrated)
  • 1x Set of 25m test leads
  • 1x Ground cable set
  • 1x Safety key switch
  • 1x User Manual (English)
  • Optional: Remote diagnosis module

Pricing

  • Standard Unit: $28,500 FOB (¥285,000)
  • Part of Enterprise Package
  • On-site training available
