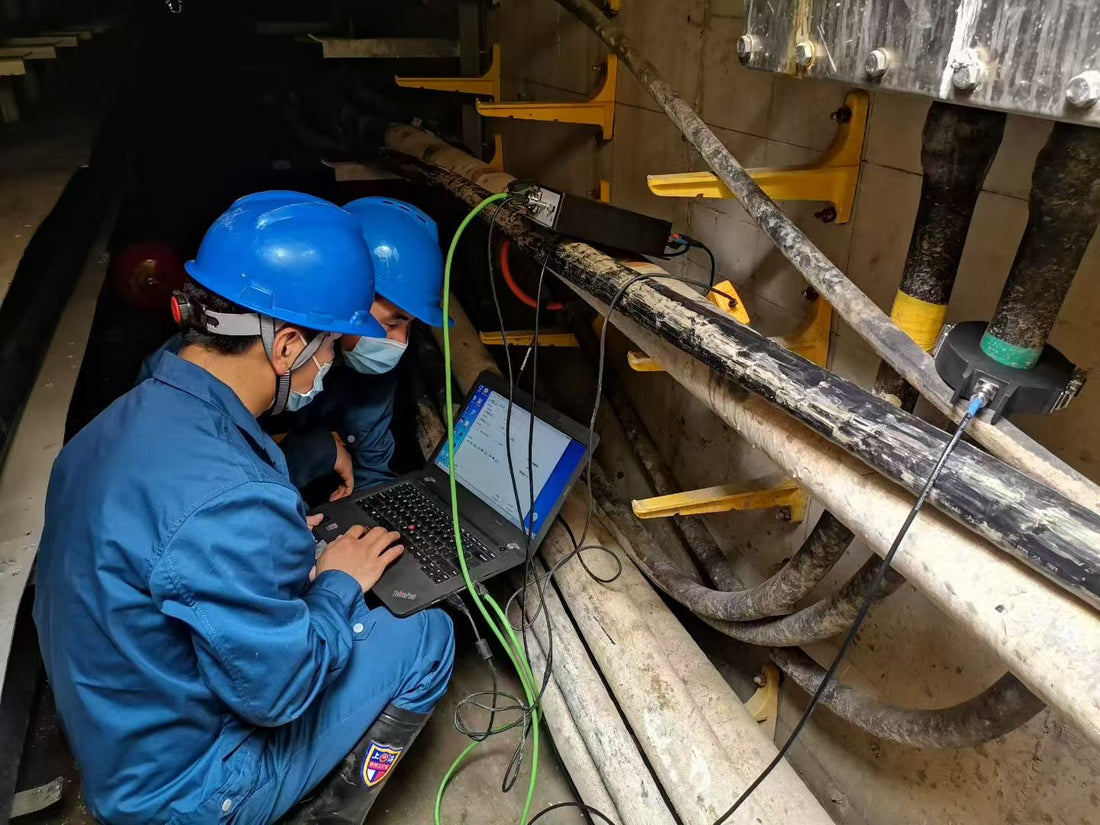

Which Method Is Used for Locating Cable Faults? (The 3-Step Professional Process)
If you've searched for cable fault location methods, you've probably seen conflicting answers — TDR, thumpers, bridges, reflectometers. Which method is actually used?
The honest answer: professionals use three methods, in sequence. Each answers a different question, and skipping any of them makes the others far less effective.
Method 1: Time Domain Reflectometry (TDR) — Pre-Location
Question it answers: How far along the cable is the fault?
The TDR sends an electrical pulse down the cable. When the pulse hits a fault (or any impedance change), part of it reflects back. By timing the reflection, the TDR calculates distance: Distance = Speed × Time / 2.
Why it's used first: it covers kilometers in minutes. A 2 km feeder can be narrowed down to a specific meter reading — "meter 780" — before anyone picks up a shovel.
Limitation: a TDR measures distance along the cable, not a physical ground location. And it can't see high-resistance faults without conditioning.
Method 2: High-Voltage Conditioning — Preparing Stubborn Faults
Question it answers: How do we locate a fault the TDR can't see?
High-resistance faults — common in aged cables, water-tree damage, and intermittent failures — are invisible to a TDR pulse. The pulse simply passes through them.
The solution is conditioning: applying high voltage (up to 32 kV or more) to burn the fault down into a low-resistance arc. Once conditioned, the fault becomes visible to both the TDR and the pinpointer.
Why it's used second: you can't pinpoint what you can't detect. Conditioning turns an "invisible" fault into a locatable one in minutes.
Method 3: Acoustic-Magnetic Pinpointing — Exact Location
Question it answers: Exactly where on the ground do we dig?
With a fault distance known (method 1) and the fault conditioned (method 2), the final step is pinpointing. An impulse generator stresses the fault so it discharges. The pinpointer detects:
- The acoustic thump — strongest directly above the fault
- The magnetic pulse — travels instantly to the fault
Where the two align is the dig point — accurate to under half a meter.
Why it's used last: pinpointing covers meters, not kilometers. It's only efficient once the search area is small.
Why Professionals Use All Three (Not Just One)
Using only a TDR leaves you digging at "meter 780" along the surface — where the cable may not lie straight. Using only a pinpointer means walking the entire cable length listening for thumps. The three methods together are the difference between a 1-day repair and a 1-week repair.
Choosing the Right Equipment for Each Method
TriEdge Technologies supplies each tool individually or as integrated systems — factory-direct at 40–60% below Western brand pricing.
FAQ
What is the most common cable fault location method? Time Domain Reflectometry (TDR) is the most common first step. It's fast, accurate, and works on most cable types.
Can one tool find all cable faults? No. High-resistance and intermittent faults require conditioning before they can be detected. Professionals use the three-method sequence.
Is the acoustic method the same as a thumper? No. The thumper (impulse generator) stresses the fault to make it discharge. The acoustic-magnetic pinpointer detects that discharge to find the location. They work together.
Which method works on live cables? Standard methods require de-energized cables. Specialized live-network systems are available for utilities that must locate faults without interrupting service.
