Mastering Underground Cable Location
Before you can fix a cable fault, you need to know exactly where the cable runs. Underground cable locating is an essential skill for every maintenance technician.
Active vs. Passive Locating
Active locating involves injecting a known signal into the cable using a transmitter. The R30 supports 10 active frequencies from 512Hz to 196kHz for different soil conditions and cable types. Passive locating detects naturally occurring electromagnetic fields at 50/60Hz, useful for initial surveys.
Connection Methods
- Direct Connection: Most accurate method, connecting transmitter directly to the cable conductor. Range up to 20km.
- Clamp Coupling: Uses a signal clamp around the cable when direct connection isn't possible. Range up to 10km.
- Induction: Places transmitter above ground over the cable path. Best for shallow cables (< 2m depth).
Depth Measurement
The R30 uses built-in 8-coil receiver array with depth measurement up to 20m. For accurate readings, ensure you're directly above the cable and the signal is strong. Always verify with multiple frequency readings.
Common Challenges

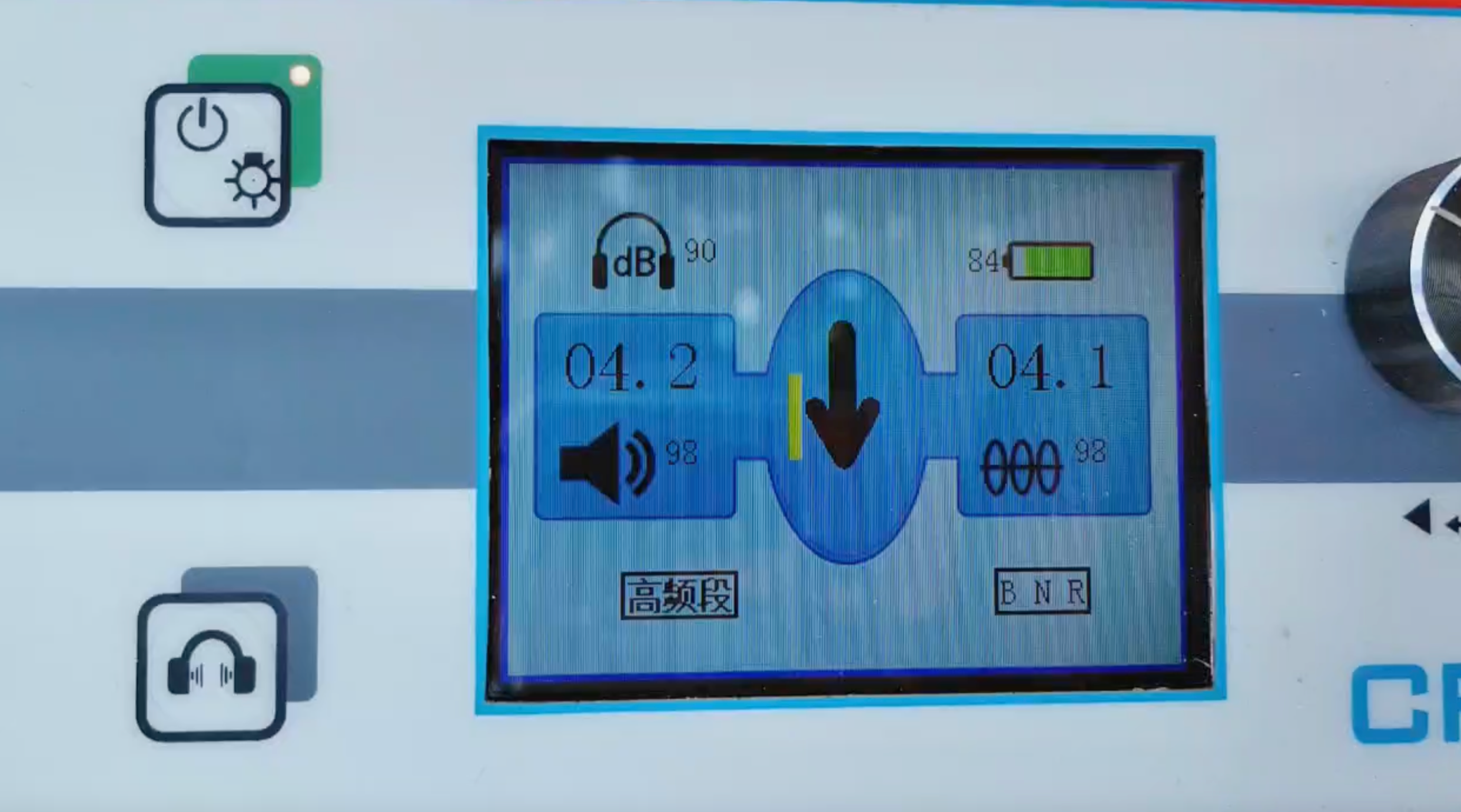

Parallel cables, overhead lines, and metallic pipes can create interference. The R30's real-time interference display helps technicians identify and work around these obstacles.
