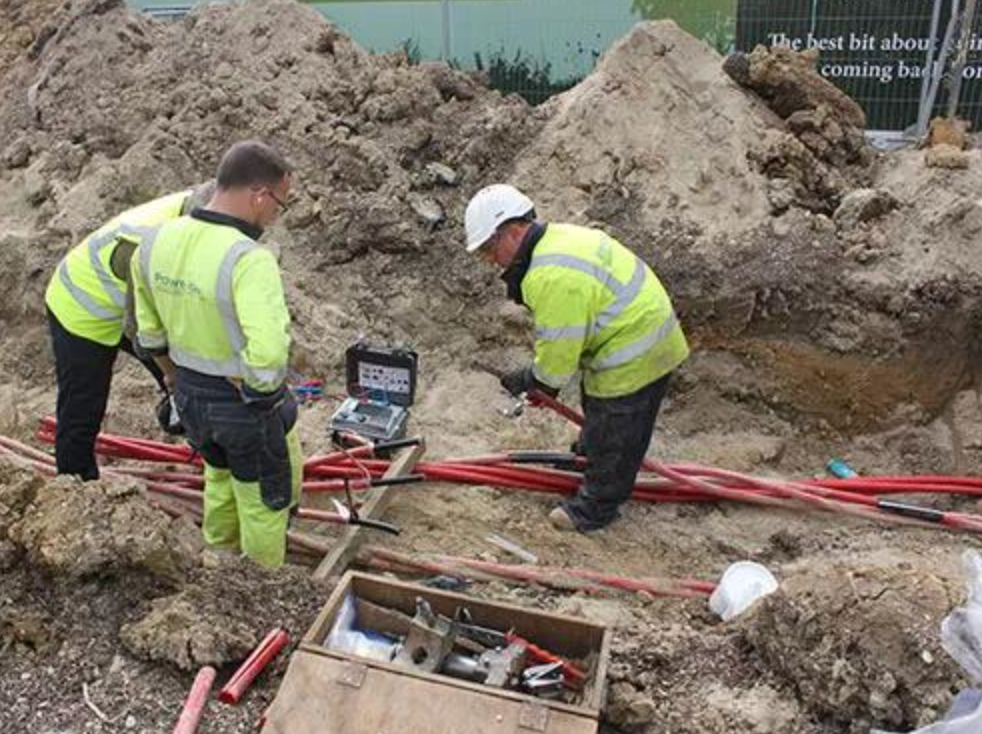

How to Locate an Underground Cable Fault: Step-by-Step Guide
Underground cable faults are invisible from the surface. A faulted feeder can be buried under pavement, soil, or concrete and finding the exact location without the right method can turn a simple repair into days of guessing and digging.
This guide explains the professional cable fault location process used by power utilities and electrical contractors worldwide:
pre-location → conditioning (if needed) → pinpointing.
Step 1: Pre-Location (Find the Distance to the Fault)
Pre-location answers one question: how far down the cable is the fault?
The standard tool is a Time Domain Reflectometer (TDR). It sends a pulse down the cable and measures the time it takes for the reflection to return. Because the pulse travels at a known speed, the distance to the fault can be calculated to within a meter.
TDR pre-location works best on:
- Low-resistance faults (short circuits, ground faults)
- Open circuits (broken conductors)
- Cable length measurements
The result narrows the search from somewhere in this 2 km feeder to around meter 780.
Recommended equipment: A professional TDR like the A10 Cable Fault Flash Tester with 0.5 m accuracy and up to 100 km range.
Step 2: Fault Conditioning (For High-Resistance Faults)
Some faults especially old, weathered, or intermittent ones have such high resistance that a TDR pulse cannot see them.
They need to be "conditioned" first.
A high-voltage power supply (such as the G35, up to 32 kV) applies a controlled voltage to the fault. This burns down the high resistance connection into a low-resistance arc that a TDR or pinpointer can then detect.
When is conditioning needed?
- Fault resistance above a few hundred ohms
- Intermittent faults that only appear under stress
- Water-tree damaged cables
- Sheath faults on PILC (paper-insulated lead-covered) cables
Step 3: Pinpointing (Find the Exact Location on the Ground)
Pre-location tells you meter 780. Pinpointing tells you exactly where to dig.
The most common tool is an acoustic-magnetic pinpointer. It detects two signals simultaneously:
1. The acoustic signal - the audible thump of the fault discharging
2. The magnetic signal - the electromagnetic pulse that travels to the fault
Where the two signals align on the ground is the fault location. Professional pinpointers like the C11 Acoustic-Magnetic Pinpointer narrow the dig point to under half a meter, saving hours of excavation.
Step 4: Verify Before You Dig
Once pinpointed, the location should be veried:
- Mark the exact spot on the surface
- Re-test with the TDR to confirm the distance matches
- If excavating near other utilities, use a cable and pipeline locator (like the R30) to confirm the cable path and avoid hitting neighboring services
- Always verify the cable is de-energized with a safety piercer (like the Z20) before excavation
The Complete Toolkit
A professional fault location job typically uses 3–4 tools:
| Step | Tool | Example |
| Pre-location | TDR | A10 Flash Tester |
| Conditioning | HV Power Supply | G35 32kV |
| Pinpointing | Acoustic-Magnetic Pinpointer | C11 Pinpointer |
| Safety | Cable Locator + Piercer | R30 Locator + Z20 Piercer |
Complete portable systems that bundle these steps are available from TriEdge Technologies at 40–60% below equivalent Western brand pricing.
FAQ
How long does it take to locate an underground cable fault?
- With the right equipment, pre-location takes minutes and pinpointing takes 30–60 minutes. The full process from arriving on site to marking the dig point typically takes 1–3 hours.
Can a TDR find faults on live cables?
- Standard TDRs work on de-energized cables. For live-network fault location, a system with specialized live-testing capability is required, such as the Standard portable test system.
Why cant I find the fault with just a TDR?
- High-resistance and intermittent faults are invisible to a TDR pulse until they are
conditioned with high voltage. This is why the complete 3-step process is necessary.
How accurate is TDR fault location?
- Professional TDRs oer accuracy of ±0.5 m, which narrows the dig window dramatically but pinpointing is still required for the exact excavation point.
