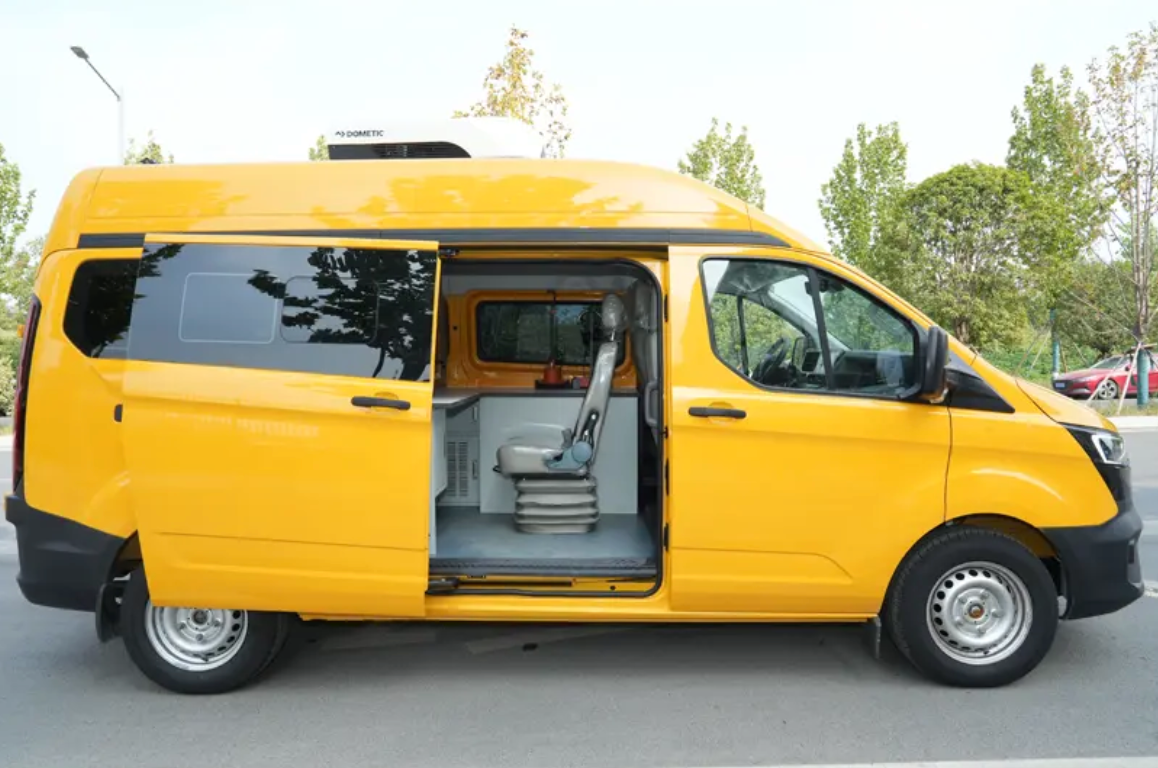

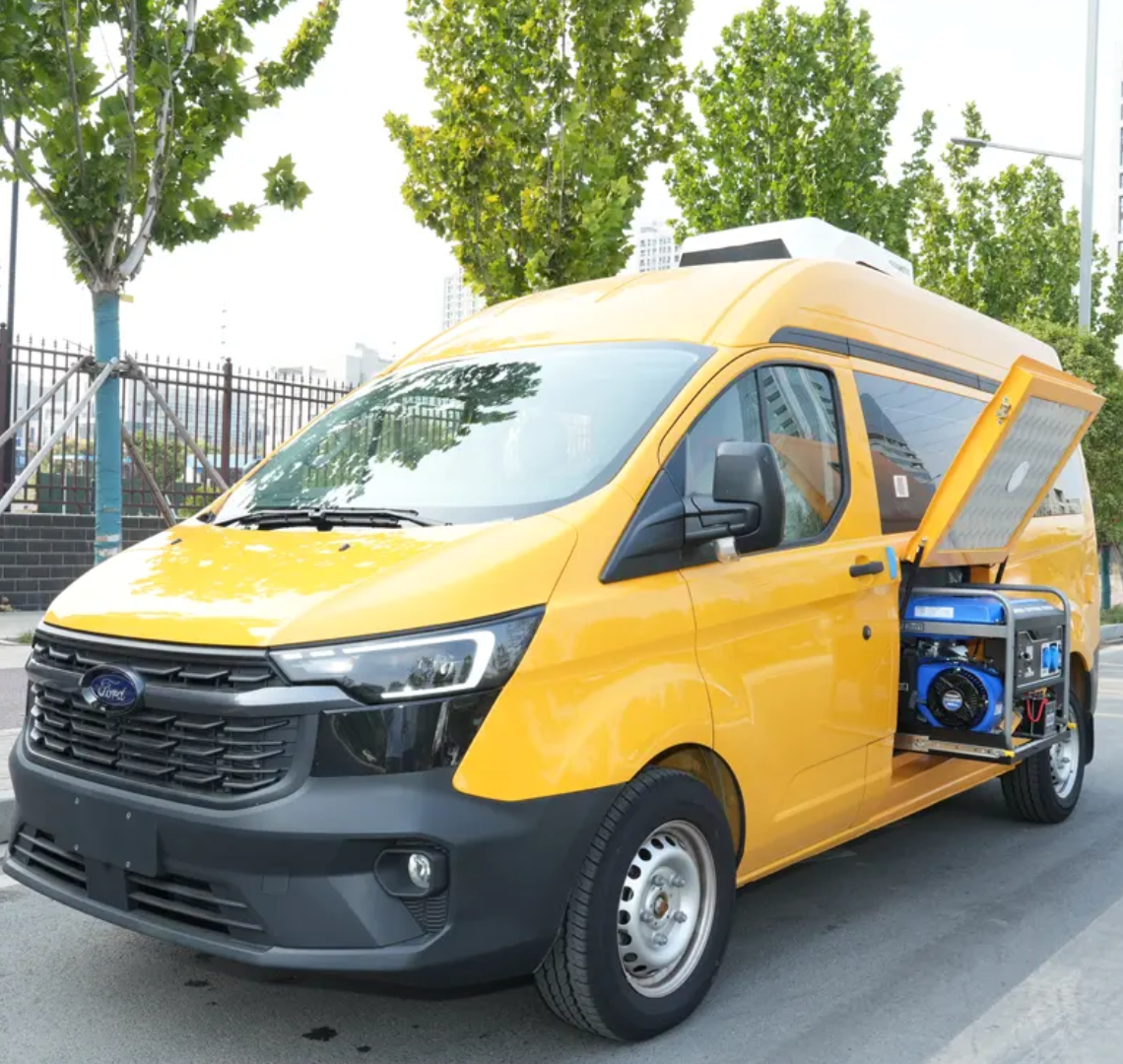

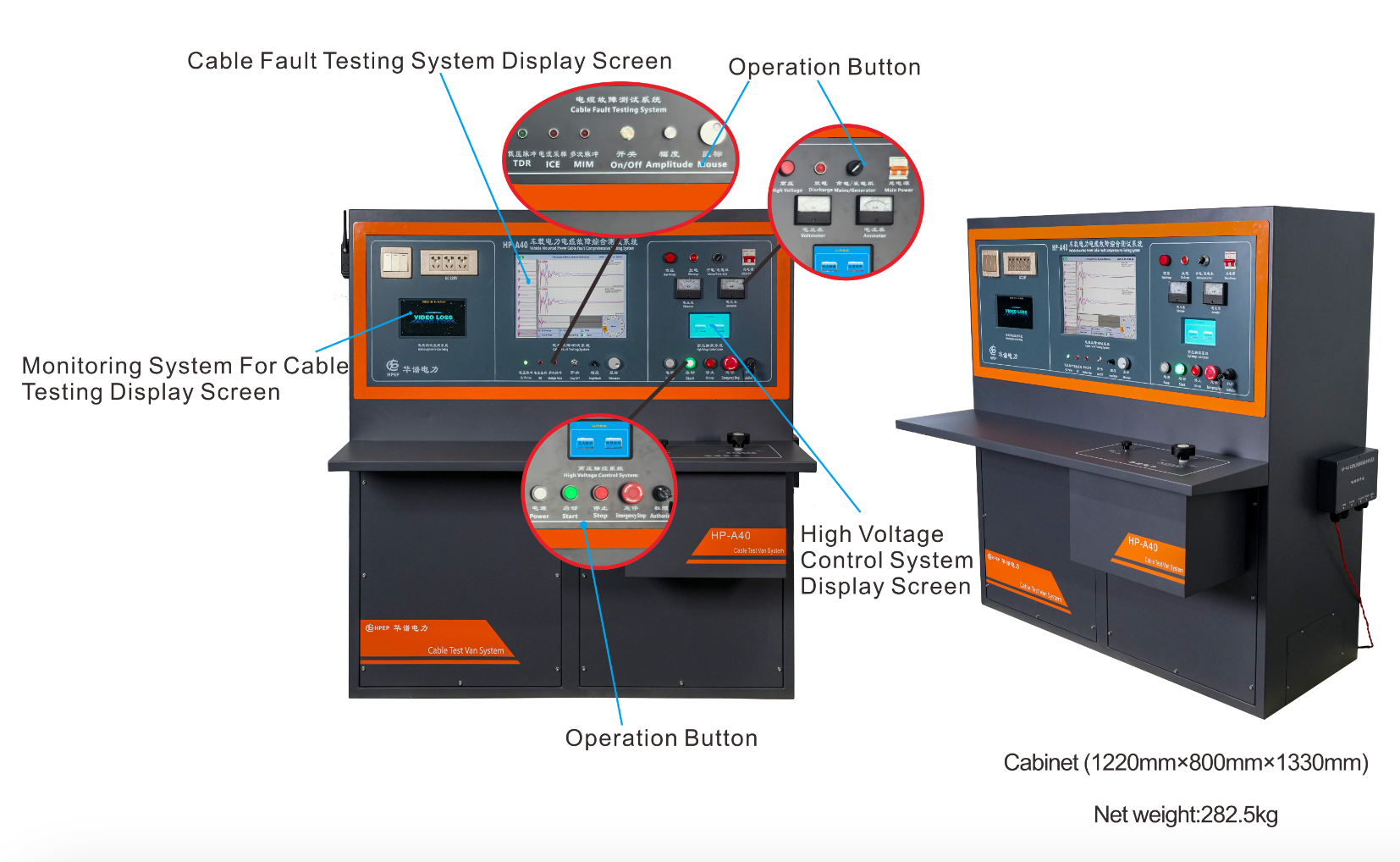

A40 Vehicle-Mounted Cable Fault Test System — Professional Mobile Lab for Utility Fleets

Short Description

The A40 is the flagship vehicle-mounted cable fault testing system, featuring a 15" industrial LCD, distributed control bus, 32kV/2048J output, plus vehicle safety monitoring and wireless intercom — the complete mobile testing lab.

Long Description

Overview

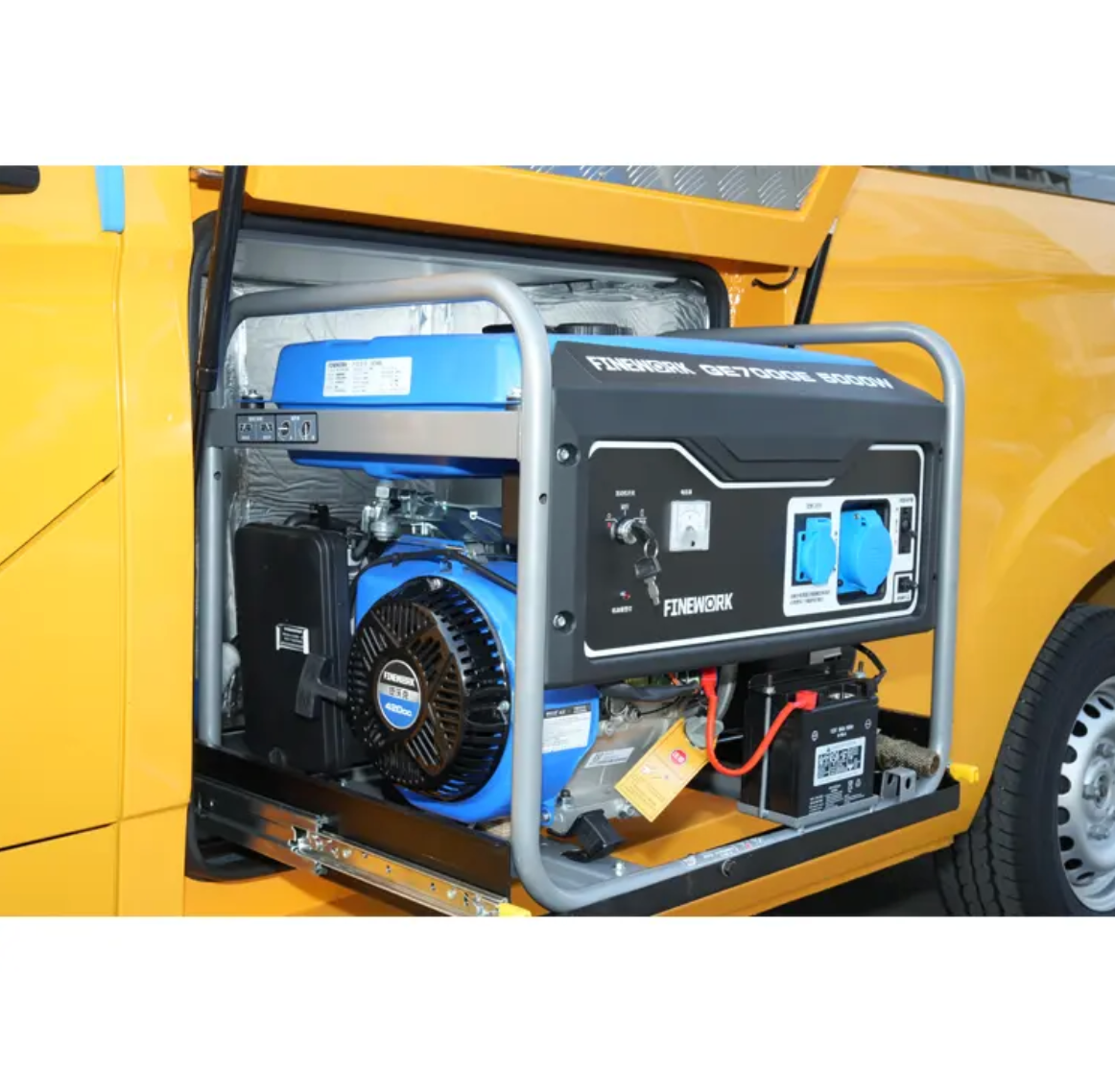

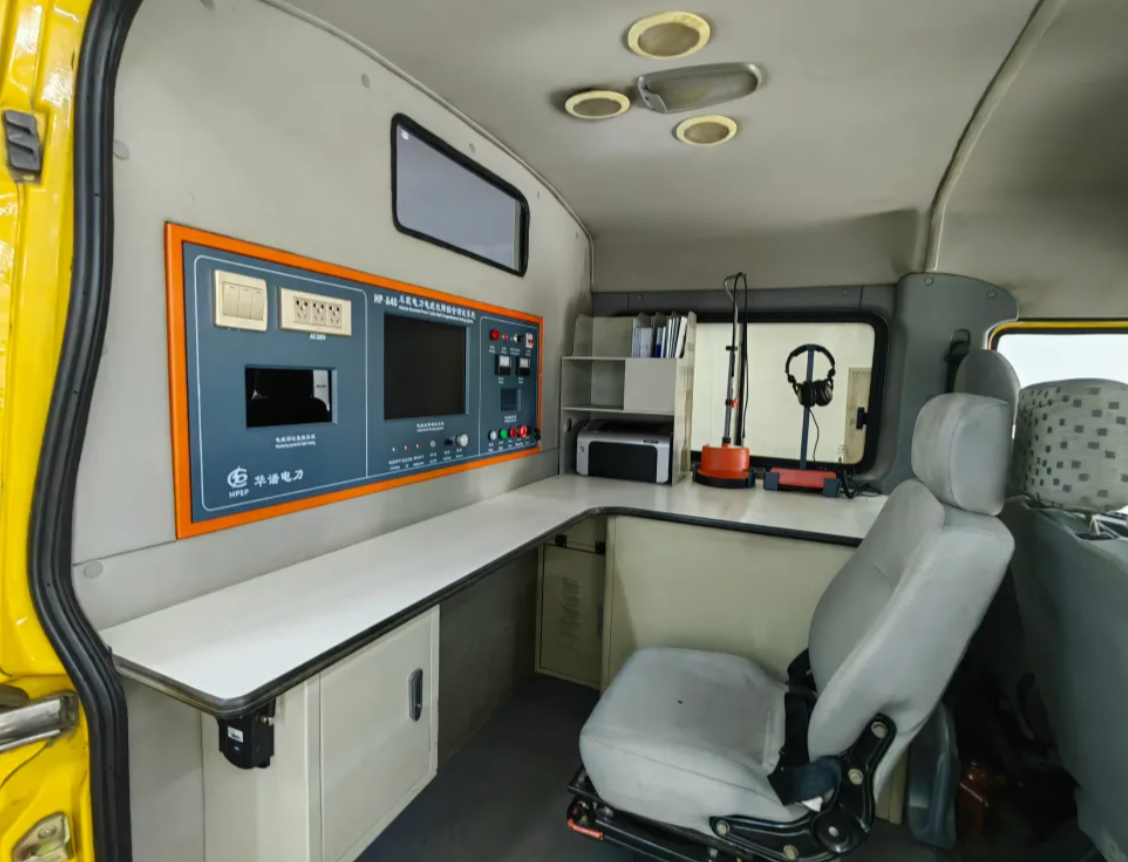

For large utilities and cable maintenance fleets that need maximum testing capability on the road, the A40 vehicle-mounted system is the ultimate solution. It integrates a high-performance TDR main console (15" Linux touch screen), HV impulse generator with three capacitor banks, a pinpointer, and comprehensive safety monitoring — all installed in a vehicle for rapid deployment. The distributed control bus architecture allows one-person operation with automated testing sequences.

Key Features

15" Industrial LCD — Linux OS, 1024×768 resolution
Distributed Control Bus — Automated sequences, one-person operation
4 Test Methods — TDR, ICE, MIM, DC Output
3 Capacitor Banks — 4µF/32kV, 16µF/16kV, 64µF/8kV
2048J Max Energy — Handles any cable fault
Vehicle Safety Monitoring — Real-time FOHM loop, step voltage, temperature, door interlock
Wireless Intercom — Communication between vehicle operator and field technician
Safety Camera System — Visual monitoring of the test area
Key-Access HV Control — Prevents unauthorized operation
Auto Discharge — Redundant safety shutdown

Technical Specifications

Parameter	Specification

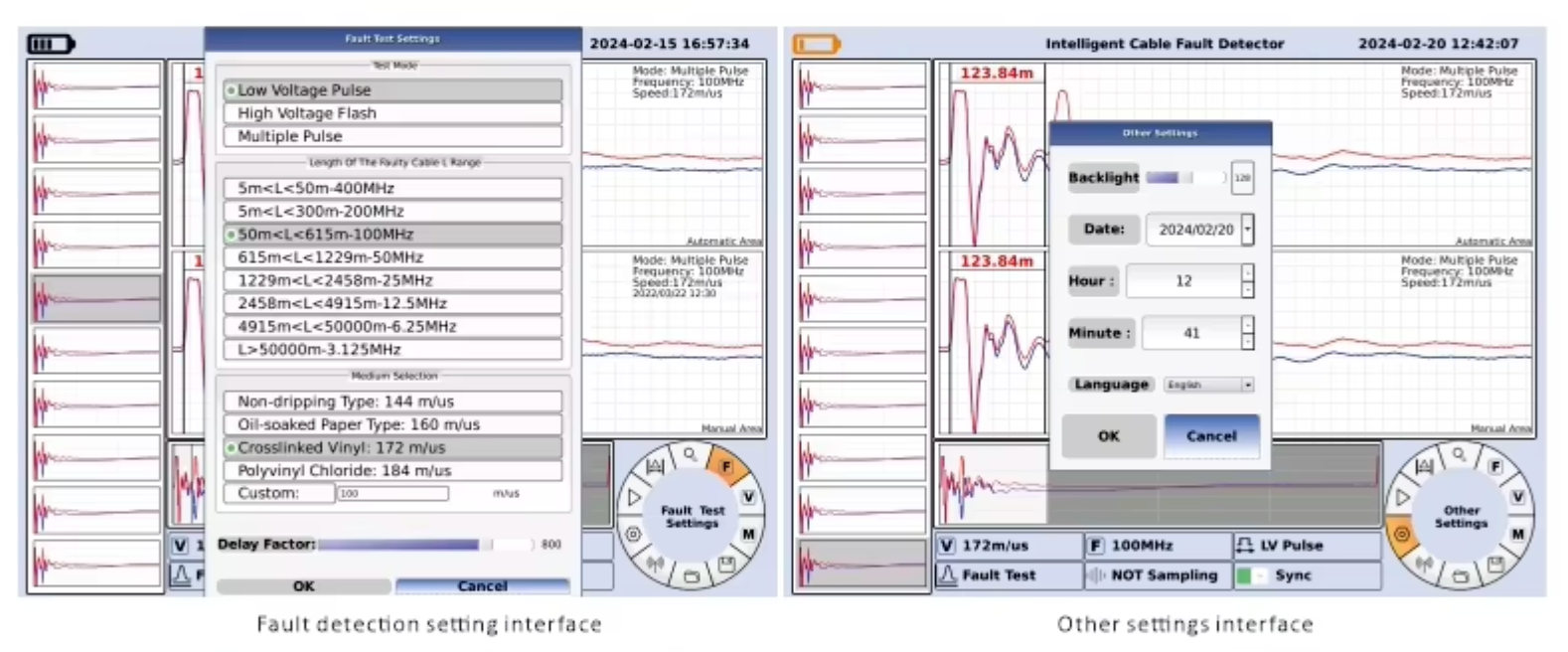

Main Console
Display	15" industrial LCD (Linux), 1024×768
Storage	32GB solid-state drive
Test Methods	TDR, ICE, MIM, DC Output
Control	Optical rotary knob (touch screen optional)
Pulse Width/Amplitude	100ns ~ 10µs, 120V
Gain Adjustment	-20 ~ +40dB
Output Impedance	120Ω
TDR Range	5m ~ 100km
Blind Zone	5m
Pinpoint Accuracy	±0.2m
Testing Accuracy	<±1% system error
Sampling Frequency	200MHz, 100MHz, 50MHz, 25MHz, 12.5MHz, 6.25MHz
Power	AC220V±10%, ≤15W; DC12V (7AH), ≤20W
HV Control System
Output Voltage	≤32kV
Capacitor Banks	4µF/32kV, 16µF/16kV, 64µF/8kV
Max Impulse Energy	2048J
Working Modes	Continuous flash, single flash, DC HV
Pulse Period	1 ~ 10s
HV Display	5" color LCD, 800×480
Input Power	AC220V±10%, 50Hz
Safety Monitoring
Sensors	FOHM loop current, step voltage, temperature, door interlock
Alerts	Pop-up warnings + automatic HV shutdown
Accessories
HV Output Cable	50m
Ground Cable	50m
Safety Ground	15m
Intercom	Wireless headset for field communication

What's Included

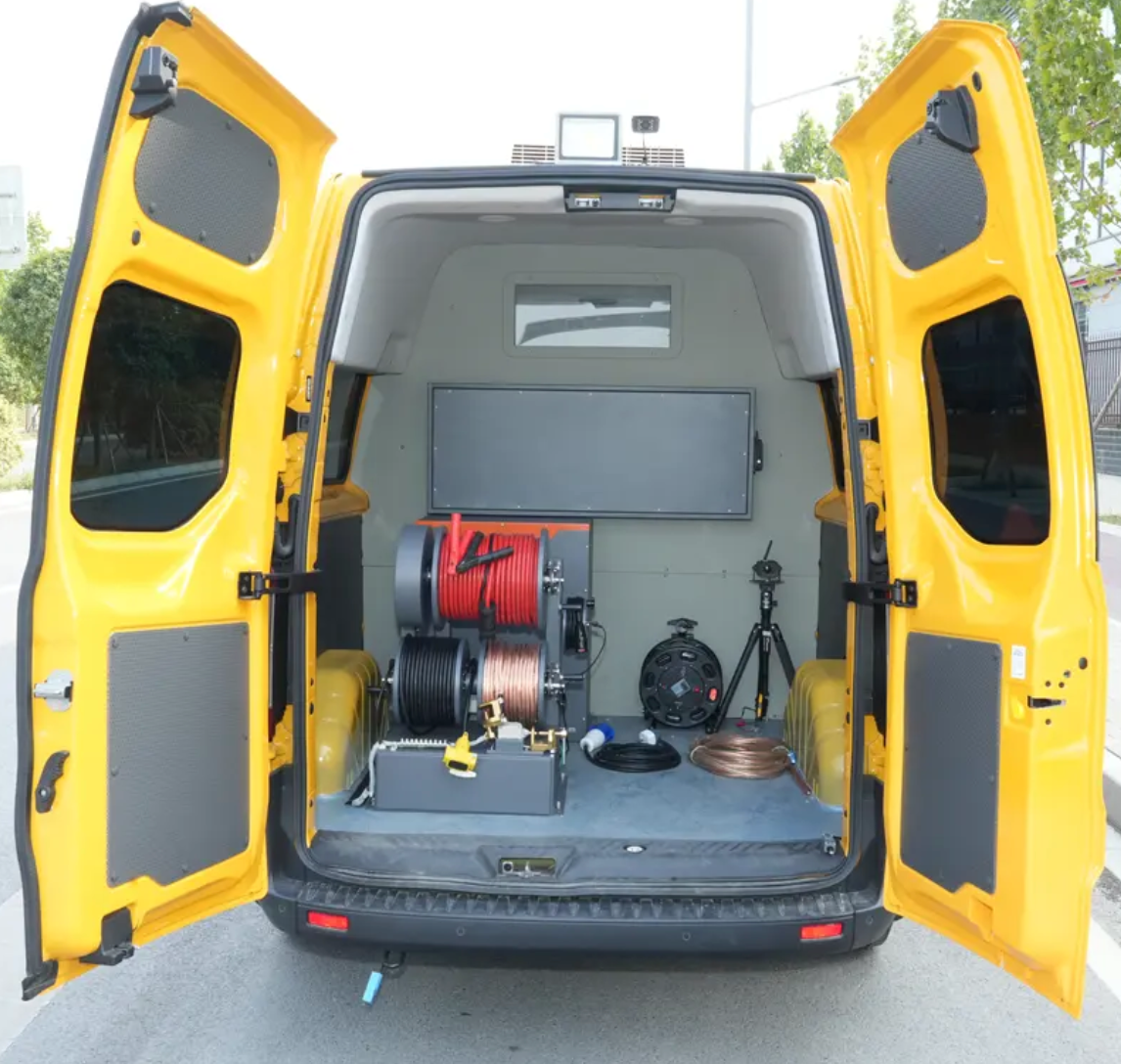

1x Vehicle-mounted main console
1x HV control system with 3 capacitor banks
1x Pinpointer (C11)
1x Safety monitoring module
1x Wireless intercom set
1x Safety camera system
1x 50m HV output cable
1x 50m ground cable
1x 15m safety ground cable
1x Key set for HV access control
1x User Manual (English)

Pricing

This price only represents the functional modules and does not include the vehicle. The functions can be customized according to your requirements. The customer needs to provide vehicle information and dimensions. We will customize the functional modules based on the vehicle information. After receiving the modules, the customer can install them on their own vehicle for use.
