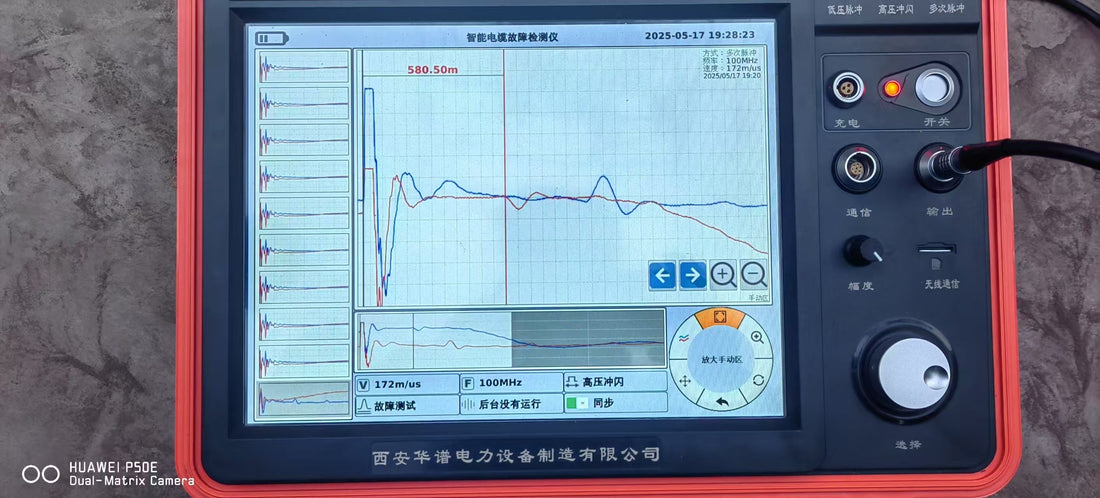

Fault Finder Calibration: Why Accuracy Depends on It
A cable fault locator is only as good as its calibration. A TDR that reads 975 meters when the fault is actually at 1,020 meters sends your crew digging in the wrong place — and turns a 2-hour job into a 2-day one.
This guide covers what fault finder calibration actually involves, why it's the most overlooked accuracy factor, and how to keep your equipment calibrated.
What "Calibration" Means for a Fault Finder
Calibration for cable fault location equipment is about accuracy verification and correction across three areas:
The most important — and most commonly wrong — is the velocity factor.
Velocity Factor: The Calibration That Matters Most
The velocity factor (Vf) tells the TDR how fast the pulse travels through your specific cable. Get it wrong, and every reading is wrong by the same percentage.
The calibration process:
- Obtain a cable sample of known length (or use a documented cable section)
- Set an initial velocity factor for the cable type
- Test the known length
- Adjust Vf until the TDR reads the actual length
- Lock in the value for that cable type
Field shortcut: many professional TDRs store multiple velocity factor presets. Calibrate each preset once for your common cable types, then select at the start of each job.
How Often Should You Calibrate?
All TriEdge equipment ships with a factory test certificate. Annual recalibration keeps the certificate valid and the readings trustworthy.
Verifying Your Fault Finder in the Field
You don't need a lab to spot-check accuracy:
- Known-length test — find a documented cable section and verify the reading matches
- Two-end test — measure from both ends; the readings should agree
- Joint check — if you know where a cable joint is, the TDR should show a small reflection at that exact distance
- Far-end reflection — the end of the cable should appear at the documented total length
Any of these showing a consistent offset means your velocity factor needs adjustment.
Pinpointer Sensitivity Check
The acoustic-magnetic pinpointer also benefits from a quick check:
- Test on a known energized fault or a test setup
- Verify the acoustic threshold detects at the rated depth
- Check headphone isolation and signal clarity
The Cost of Poor Calibration
Every hour of wrong excavation costs crew time, pavement repair, and outage extension. Calibration is the cheapest accuracy insurance available.
Where to Get Calibration Support
- Factory calibration — TriEdge offers calibration service and test certificates for all equipment
- In-field verification — the steps above, using documented cable lengths
- Annual service — recommended to maintain certificate validity and accuracy
Contact TriEdge for calibration service: info@triedge.store
FAQ
What is fault finder calibration? Verifying and correcting the equipment's accuracy — primarily the TDR velocity factor and time-base, plus pinpointer sensitivity.
How often should I calibrate my cable fault locator? At minimum annually, plus whenever you suspect inaccurate readings or switch between different cable types.
Can I calibrate my TDR myself? Yes — velocity factor calibration against a known cable length is a standard field procedure documented in the manual. Factory calibration for the internal time-base is recommended annually.
Why do my readings keep shifting? Likely causes: incorrect velocity factor, temperature effects on long cables, or cable sections with mixed types. Verify with a two-end test.
